November 11, 2024 at 10:41 am #9511
Bran
Participant

Thank you.
I didn’t make it. Could you please give an example so that I can learn how to do this right? I kind of can’t understand how the discreteNormal was calculated. I also tried inclined channel, the same problem appears. It seems that if there are more than one layer geometry whose material are 0 around the boundary, then the dicreteNormal won’t be set properly.

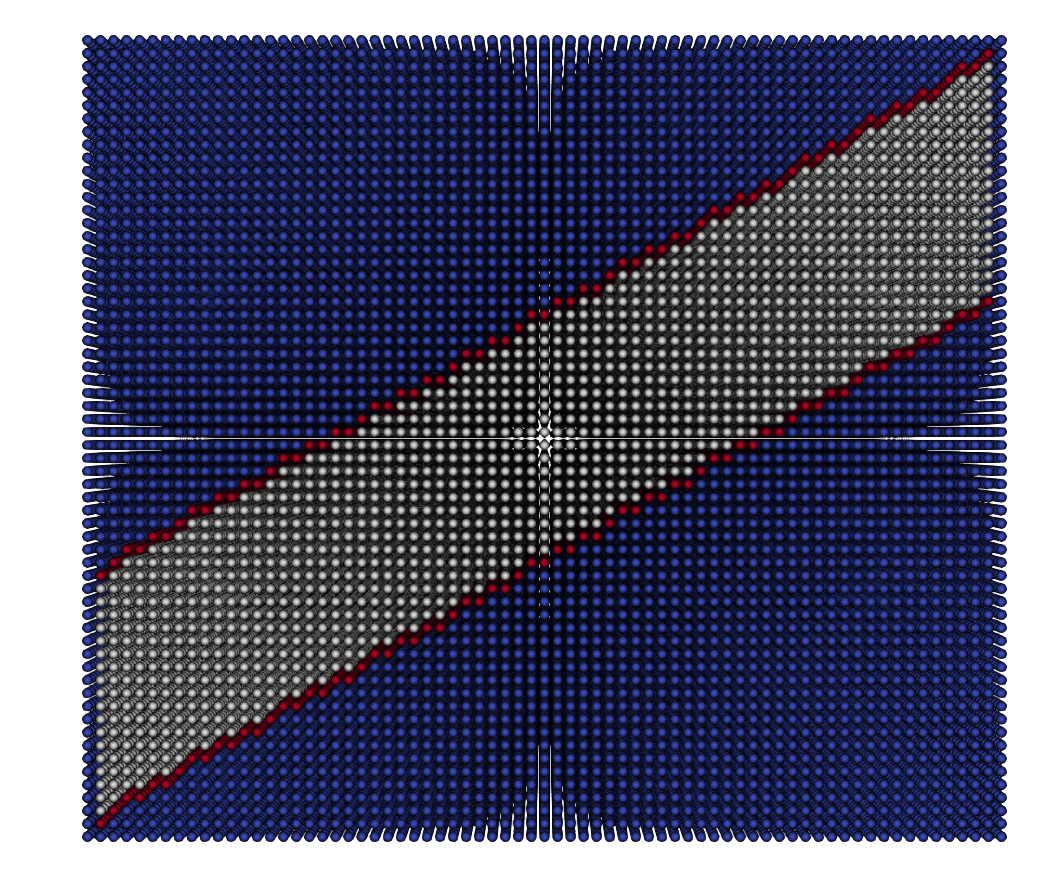

inclined channel
